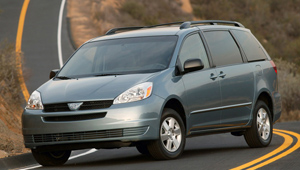

Toyota Sienna Overview

Toyota Sienna Five years ago, the Toyota Sienna was completely redesigned. Since then, we've consistently praised the Sienna as a top choice in its segment, deeming it luxurious, roomy and even Lexus-like in its refinement. The 2009 Toyota Sienna is unchanged from last year, but it remains one of the best minivans you can buy. Competition is fierce in this segment, but the Sienna boasts Toyota's familiar 3.5-liter V6, an all-star engine renowned for its smooth power and laudable fuel efficiency. Another feather in the Sienna's cap is the fact that it's currently the only minivan to offer all-wheel drive, so if you live where ice and snow are common, the Sienna has a decided advantage over its rivals.

In CE and LE trim, the Sienna can accommodate eight passengers; XLE and Limited models offer seating for seven, thanks to captain's chairs in the second row. The Limited version is especially luxurious, and it wouldn't be that far off to call it the Lexus of minivans. Gathered leather on the doors, comfortable captain's chairs, a JBL sound system and the option of adaptive cruise control almost make the Toyota logo on the steering wheel seem like a mistake. When it comes to handling prowess, the 2009 Toyota Sienna doesn't offer a particularly compelling package. Of course, no minivan is going to be purchased on the strength of its corner-carving ability, but the Sienna's archnemesis, the Honda Odyssey, happens to deliver responsive handling along with a reasonably smooth ride. The Kia Sedona/Hyundai Entourage twins are also satisfying alternatives, especially for those put off by Toyota's typically higher prices. But overall, the Sienna is an excellent van with many compelling features and options. We wouldn't buy another minivan without trying the Sienna first.

The 2009 Toyota Sienna minivan comes in four trim levels -- CE, LE, XLE and Limited. The CE and LE come in seven- and eight-passenger configurations; the upper trims are seven-passenger only. All but the CE offer a choice of front-wheel or all-wheel drive; the CE is front-wheel drive only. The base Sienna CE includes 16-inch steel wheels, dual sliding rear doors with power-down windows, front and rear air-conditioning, a six-speaker CD/MP3 stereo with an auxiliary audio jack, a telescoping steering wheel and full power accessories. The LE adds privacy and solar energy-absorbing glass, a roof rack, heated side mirrors, a CD changer, floor mats, steering-wheel-mounted audio controls, a folding front passenger seat, cruise control and upgraded instrumentation.

Options on the Toyota Sienna are grouped into packages that vary based on buying region, and they can get rather pricey. You'll need to study them carefully to ensure that the Sienna you pick has just what you want. Notable items include xenon headlights, a rear-seat DVD entertainment system, a navigation system (with a back-up camera), a power-folding third-row seat and a pair of 115-volt power outlets. A new package for the LE combines a JBL stereo with Bluetooth and rear-seat entertainment.

Toyota Sienna Accessories And Features

Brakes
Brake Type Pwr
Brake ABS System 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness (in) 11.65 x - TBD -
Rear Brake Rotor Diam x Thickness (in) 11.46 x - TBD -
Cargo Area Dimensions
Cargo Area Length @ Floor to Seat 1 (in) - TBD -
Cargo Area Length @ Floor to Seat 2 (in) - TBD -
Cargo Area Length @ Floor to Seat 3 (in) - TBD -
Cargo Area Width @ Beltline (in) - TBD -
Cargo Box Width @ Wheelhousings (in) - TBD -
Cargo Box (Area) Height (in) - TBD -
Cargo Volume to Seat 1 (ft3) 148.9
Cargo Volume to Seat 2 (ft3) 94.5
Cargo Volume to Seat 3 (ft3) 43.6
Cooling System
Total Cooling System Capacity (qts) 11.7
Electrical
Cold Cranking Amps @ 0° F (Primary) - TBD -
Maximum Alternator Capacity (amps) - TBD -
Engine
Engine Type Gas V6
Displacement 3.5L/211
Fuel System MPFI
SAE Net Horsepower @ RPM 266 @ 6200
SAE Net Torque @ RPM 245 @ 4700
Exterior Dimensions
Wheelbase (in) 119.3
Length, Overall (in) 201.0
Width, Max w/o mirrors (in) 77.4
Height, Overall (in) 68.9
Tread Width, Front (in) 65.9
Tread Width, Front (in) 65.6
Tread Width, Rear (in) 67.3
Tread Width, Rear (in) 66.9
Min Ground Clearance (in) 6.9
Rear Door Opening Height (in) - TBD -
Rear Door Opening Width (in) - TBD -
Liftover Height (in) - TBD -
Fuel Tank
Fuel Tank Capacity, Approx (gal) 20
Interior Dimensions
Passenger Capacity 7
Passenger Volume (ft3) 133.8
Front Head Room (in) 42.0
Front Leg Room (in) 42.9
Front Shoulder Room (in) 63.8
Front Hip Room (in) 58.4
Second Head Room (in) 40.2
Second Leg Room (in) 39.6
Second Shoulder Room (in) 64.9
Second Hip Room (in) 67.5
Third Head Room (in) 38.1
Third Leg Room (in) 39.5
Third Shoulder Room (in) 61.1
Third Hip Room (in) 51.8
Mileage
EPA Fuel Economy Est - City (MPG) 17
EPA Fuel Economy Est - Hwy (MPG) 23
Steering
Steering Type Pwr Rack & Pinion
Steering Ratio (:1), Overall 15.5
Lock to Lock Turns (Steering) 3.40
Turning Diameter - Curb to Curb (ft) 36.8
Turning Diameter - Wall to Wall (ft) - TBD -
Suspension
Suspension Type - Front MacPherson Strut
Suspension Type - Rear Torsion Beam
Suspension Type - Front (Cont.) w/Stabilizer Bar
Suspension Type - Rear (Cont.) w/Stabilizer Bar
Shock Absorber Diameter - Front (mm) - TBD -
Shock Absorber Diameter - Rear (mm) - TBD -
Stabilizer Bar Diameter - Front (in) 1.02
Stabilizer Bar Diameter - Rear (in) 0.79
Tires
Front Tire Size P225/60R17
Front Tire Size P215/65R16
Rear Tire Size P225/60R17
Rear Tire Size P215/65R16
Spare Tire Size T155/80D17
Trailering
Dead Weight Hitch - Max Trailer Wt. (lbs) 3500
Dead Weight Hitch - Max Tongue Wt. (lbs) 350
Transmission
Drivetrain Front Wheel Drive
Trans Type 5
Trans Description Cont. Automatic
First Gear Ratio (:1) 4.24
Second Gear Ratio (:1) 2.36
Third Gear Ratio (:1) 1.52
Fourth Gear Ratio (:1) 1.05
Fifth Gear Ratio (:1) 0.76
Reverse Ratio (:1) 3.38
Final Drive Axle Ratio (:1) 3.08
Vehicle
EPA Classification 2WD Minivans
Weight Information
Base Curb Weight (lbs) 4177
Wheels
Front Wheel Size (in) 16 x - TBD -
Front Wheel Size (in) 17 x 6.5
Front Wheel Size (in) 16 x 6.5
Rear Wheel Size (in) 16 x - TBD -
Rear Wheel Size (in) 17 x 6.5
Rear Wheel Size (in) 16 x 6.5
Spare Wheel Size (in) T155/80R17
Front Wheel Material Alloy
Front Wheel Material Steel
Rear Wheel Material Alloy
Rear Wheel Material Steel
Spare Wheel Material Steel
